It is a contactless access control reader that utilizes an advanced RF receiver circuit design and an embedded microcontroller, combined with efficient decoding algorithms. It features high sensitivity, low current consumption, a single DC power supply, a low price, and high performance. Its fully sealed design, resistant to dust and moisture, allows users to install it outdoors and in other harsh environments, ensuring no mechanical wear and exceptional durability.

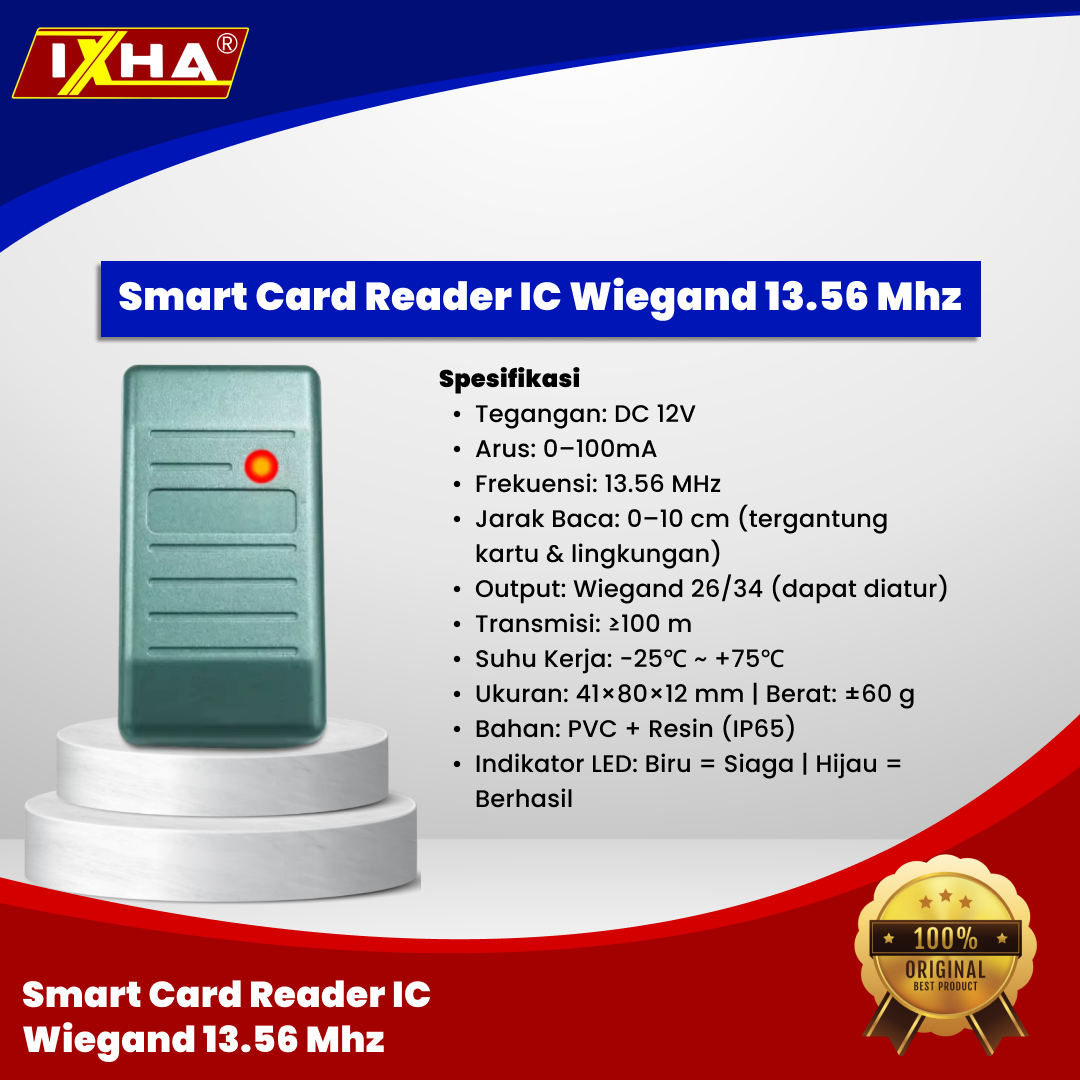

Specifications:

Operating Voltage: 12 V DC

Current Consumption: 0–100 mA

Supported cards: 13.56 MHz

Reading Range: 0 mm–100 mm (depending on the card or the environment)

reader interval: <0.5 s

Format: Wiegand 26/Wiegand 34 (User-configurable)

Transmission distance: WG26/34 ≥ 100 m

Operating Temperature: -25°C to +75°C

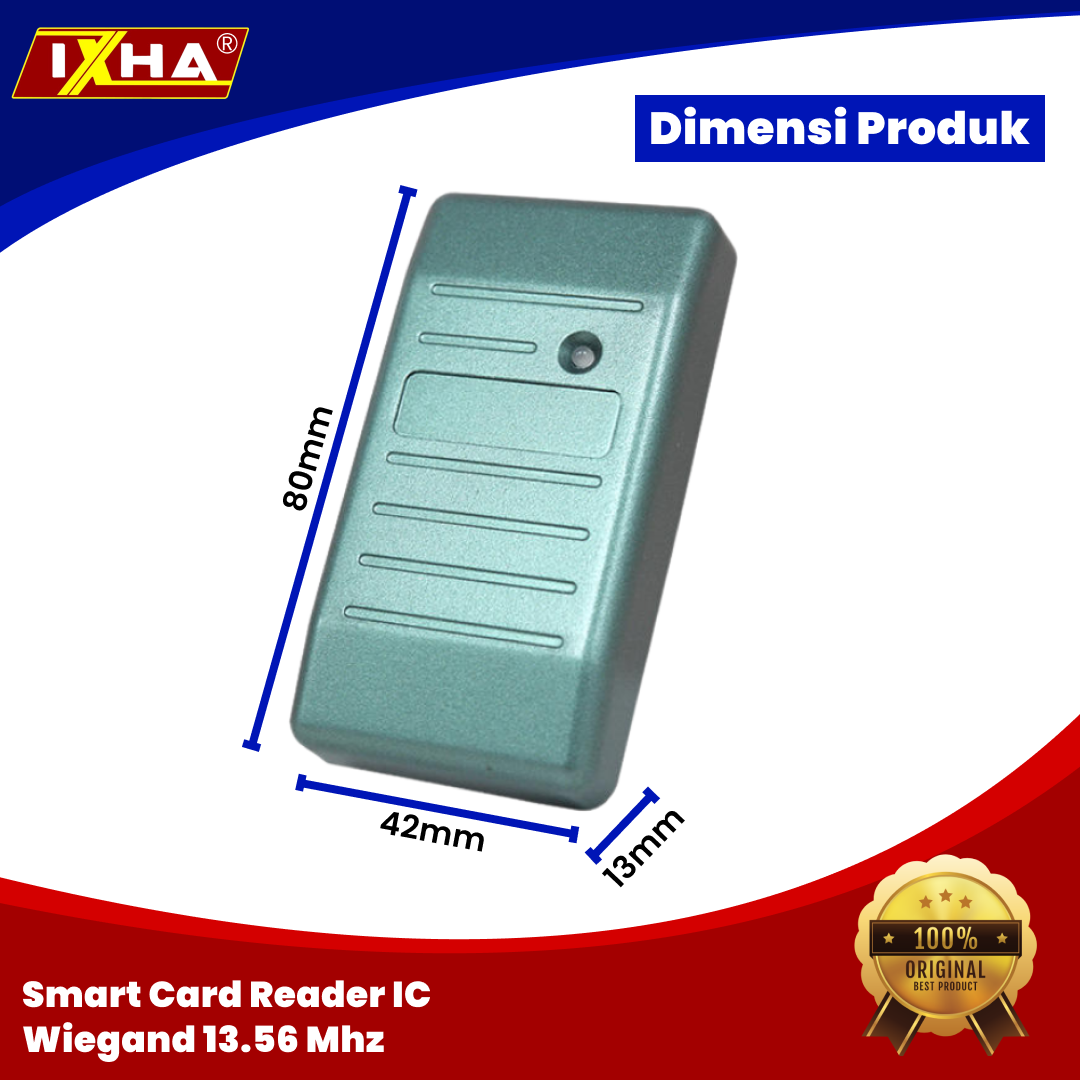

Size: 41 mm x 80 mm x 12 mm

Weight: About 60 g

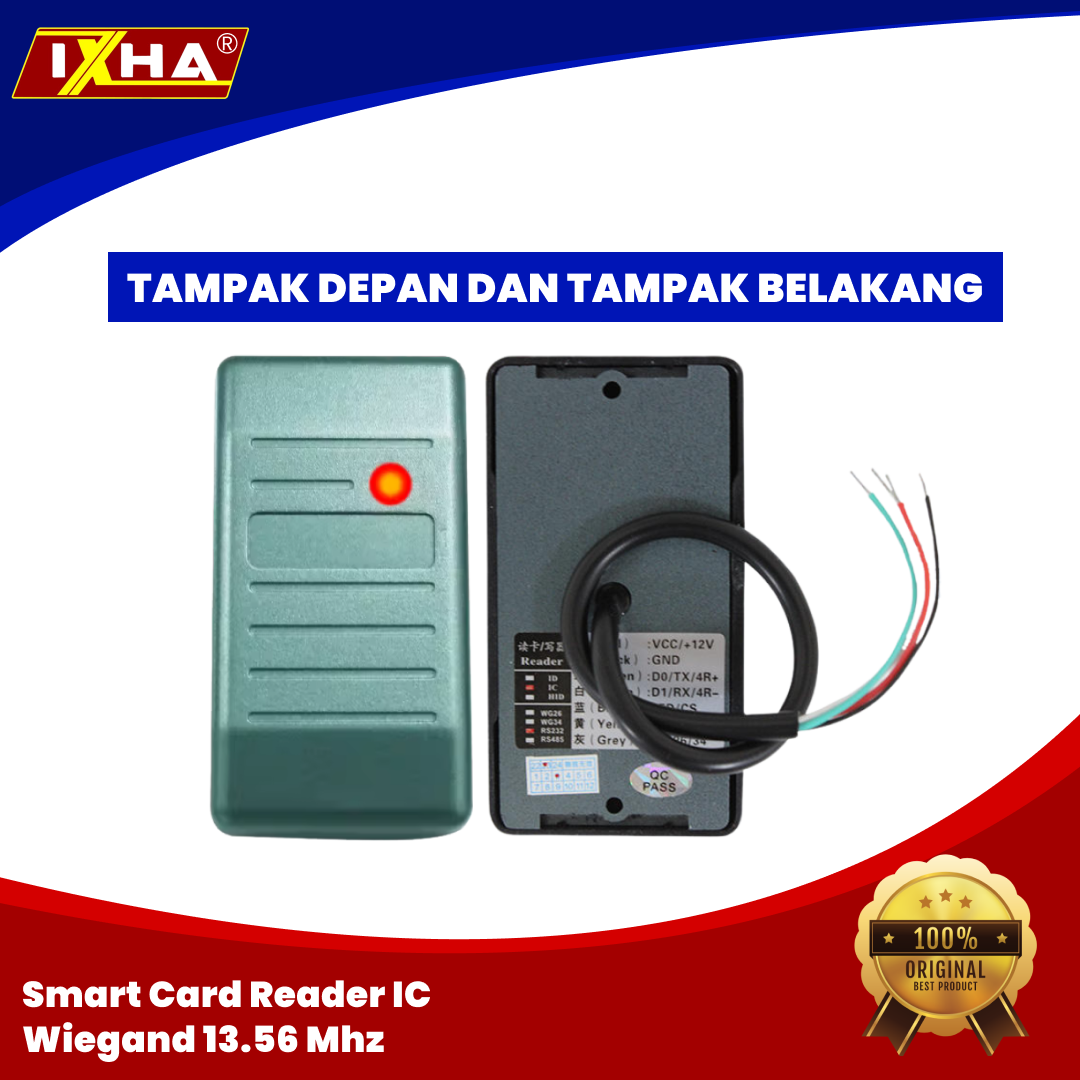

Lead Length: 180 mm ± 5 mm

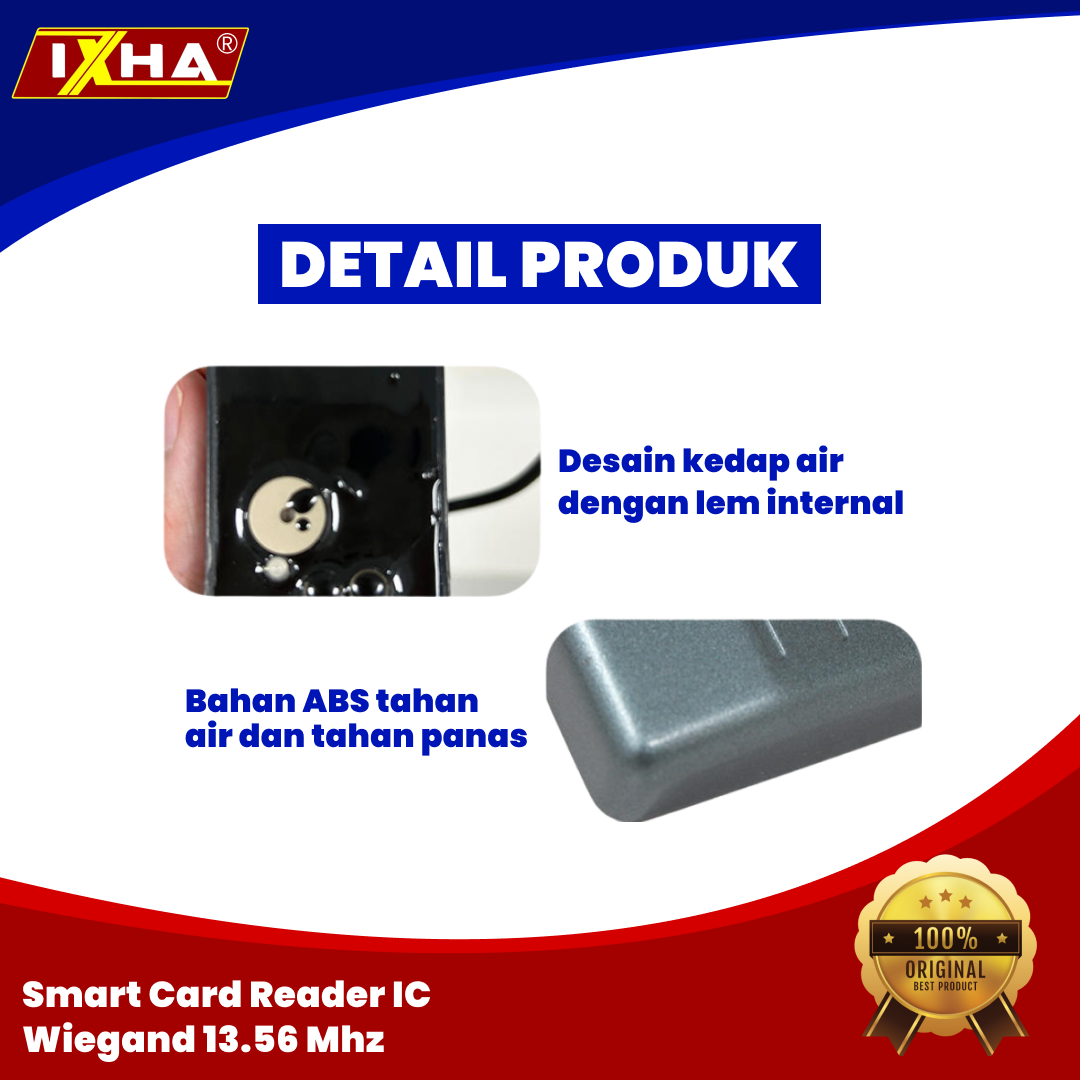

Material: PVC & Resin Adhesive (IP65 waterproof)

Status Indicator: 2-PC LED (Blue indicates standby, Green indicates successful reading)

Notes:

1. Turn off the power and do not operate the device while installing or disassembling it.

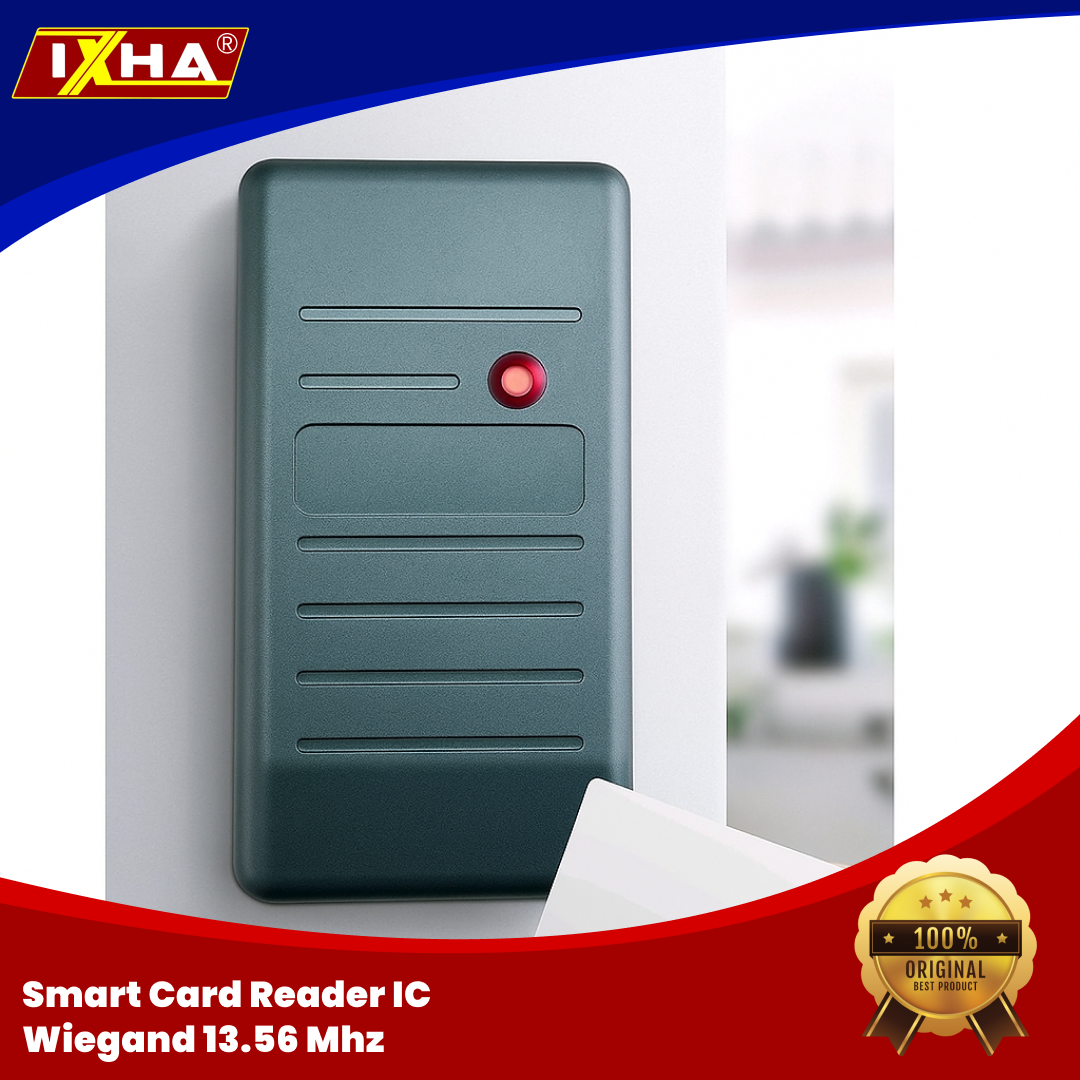

2. The reader must be mounted on a wooden, concrete, or brick wall, or placed on a table. There must be no large iron or steel objects within a radius of about 10 centimeters.

3. Different cards affect the reader's range

4. If the distance of reader between two machines <0.3 m, will interfere with each other. In other words, the best distance between the reader is kept at 0.3 meters above.

5. If the card is still in the sensing area, the reader will not display any prompts and will not send any data.

6. The access control reader cannot store user data or information; we cannot add users via card, password, or fingerprint. It is an unlocking device that only supports cards or passwords; you must rely on the access controller, time-and-attendance machines, or multi-door controllers.

Package Includes:

1 x Card Reader
